Mini 3-D/3-CH Digital Weight Indicator For 1-3 Channels Force Measuring System

Name: Mini 3D3CH Digital Weight Indicator For 13 Channels Force Measuring System
Brand: Supmeter
Price: 1 USD

Quality Mini 3-D/3-CH Digital Weight Indicator For 1-3 Channels Force Measuring System for sale

Brand Name : Supmeter

Model Number : BST106-B60[R]

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T, Western Union

Packaging Details : 1pcs/box

Power Supply : DC24V

DI : 4

DO : 2

Outline Size : 107*60*100mm

Contact Now

Mini 3-D/3-CH Force Measuring Controller Electronic Weighing Indicator For 1-3 Channels Force Measuring System

Technical Specification

Executing Standard

CMC GB/T 7724-2008PRC National Standard.
OMIL R76: 2006International Recommendation.
Accuracy Grade: III.
Verification Accuracy: 0.03%.
Static Force Measuring Accuracy: 0.2%~0.5%.

Display

2×16 LCD display screen with white LED background for English/Digit display.
Channel X/Y/Z Force Value Display Range: -5000~+5000.
Resultant Force Display Range: 0~9999.
Channel X/Y/Z Force Capacity: Setting Range 1~5000.
Scale Division: Optional 1, 2, 5, 10, 20, 50, 100, 200, 500.
Display Resolution: 1/5000.
Force Value Unit: Optional kg, t, g, N, kN, none.
Decimal Point: Optional 0, 0.0, 0.00, 0.000.
Display Refreshing Time: Setting Range 0.01~1.00s.

Kaypad

4-key keypad for shortcut operation.

Channel X/Y/Z Loadcell Interface

Excitation Voltage/Max. Current: DC5V/120mA [4-350Ω loadcells].
Signal Input Range: ±35mV.
Output Sensitivity of Loadcell: 1.0~7.0mV/V.
24-bit ∑-△ADC with internal resolution 1/1,000,000.
Sampling Frequency: 1280Hz.
Zero Drift: ±0.1μV/℃ RTI (Relative to Input).
Gain Drift: ±5ppm/℃.
Non-linearity: 0.005%FS.

Switch Signal Interface

4 Normally Open Switch Inputs [DI].
2 Transistor Switch Outputs [DO] for Real-time Resultant Force or Resultant Force Peak Value Upper/Lower Limit Alarm.
The Contact of Transistor Switches can be defined as ‘Normally Open’ or ‘Normally Closed’.
Contact Capacity of Transistor Switch: DC24V, 10mA.

Digital Communication Interface

COM1: Fixed configuration RS485&RS232. Free to select one of them via internal DIP switch.
Connectable: Host IPC/PLC and LED Remote Display.

Operating Specification

Operating Voltage: DC24V±20%.
Max. Power Consumption: 5W.
Outline Size: 107×60×100mm [W×H×D].
Panel Cut-out Size: 94×47 mm [W×H].
Operating Temperature: -10℃ to +40℃.
Storage Temperature: -30℃ to +60℃.
Relative Humidity: Max. 85%RH.
Protection Level of Front Panel: IP65.
Weight: Approx. 0.25kg.

Pictures

Data Display

Name	Description	Range	Note
X	Channel X Real-time Force Value or Peak Value.	-5000~+5000	Refer to Parameters [202]~[207].
Y	Channel Y Real-time Force Value or Peak Value.	-5000~+5000
Z	Channel Z Real-time Force Value or Peak Value.	-5000~+5000
[F]	Real-time Resultant Force or Resultant Force Peak Value [Force Value Unit].	3-D Algorithm: F² = X² + Y² + Z² CUSUM Algorithm: F = X + Y + Z

Alarm Sign

Sign	Alarm Cause	Solution
AD_ER	ADC Failure.	Replace the ADC module.
OV_AD	Over ADC Range.	Force signal exceeds A/D conversion range. 1. Check if the loadcell is connected. 2. Check if the capacity of loadcell is too small. 3. Check if the loading force is too big.
OV_LD	Force Value Overload Alarm.	Force Value>(Single-channel Force Capacity+9×Scale Division). 1. Check if the loadcell is connected. 2. Check if the capacity of loadcell is too small. 3. Check if the loading force is too big. Refer to Parameter [102].
OV_LD	Resultant Force Overload Alarm.	Resultant Force>(Max. Resultant Force+9×Scale Division). Refer to Parameter [102].

State Indication

LED light	Description
[RUN]	OFF: Real-time Force Value tracking display state. ON: Peak Value Detecting Result holding display state [Peak Value Detecting Process Finished]. Blinking: Peak Value tracking display state [In Peak Value Detecting Process].
[AL1]	Real-time Resultant Force or Resultant Force Peak Value Upper Limit Alarm. Refer to Parameters [200]&[202].
[AL2]	Real-time Resultant Force or Resultant Force Peak Value Lower Limit Alarm. Refer to Parameters [201]&[202].

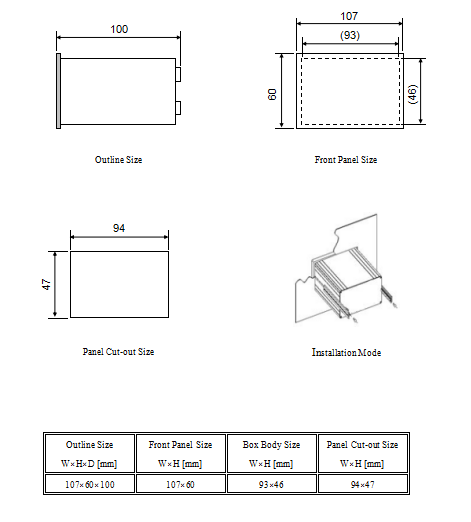

Installation
